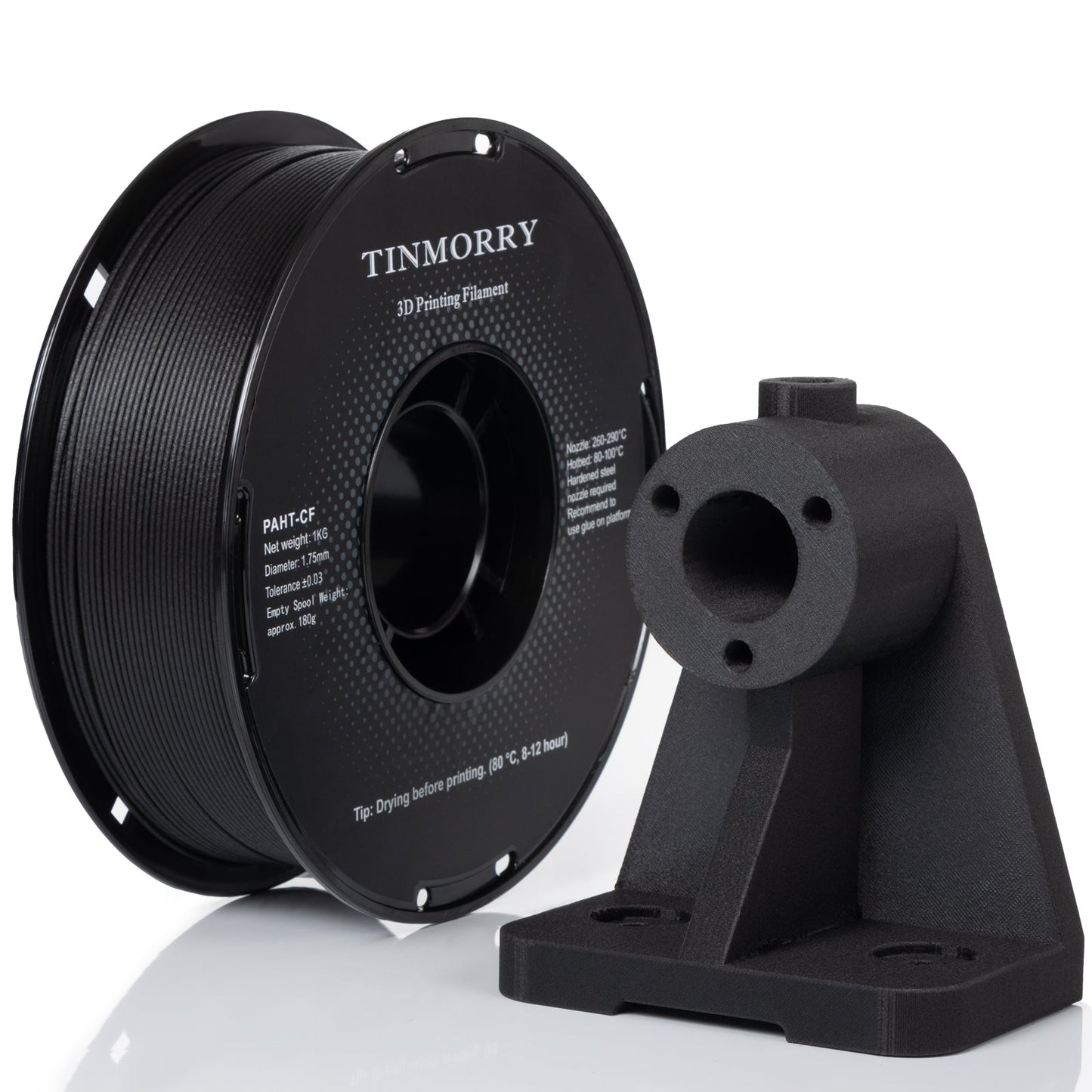

TINMORRY PAHT-CF Filament 1.75mm 1Kg

TINMORRY PAHT-CF Filament 1.75mm 1Kg

$109.99 CAD
$59.95 CAD $109.99 CAD
Sale Sold out
Color
Packing Size
  • High tensile strength
  • Low water absorption
  • Exceptional thermal resistance
  • Excellent Mechanical Properties

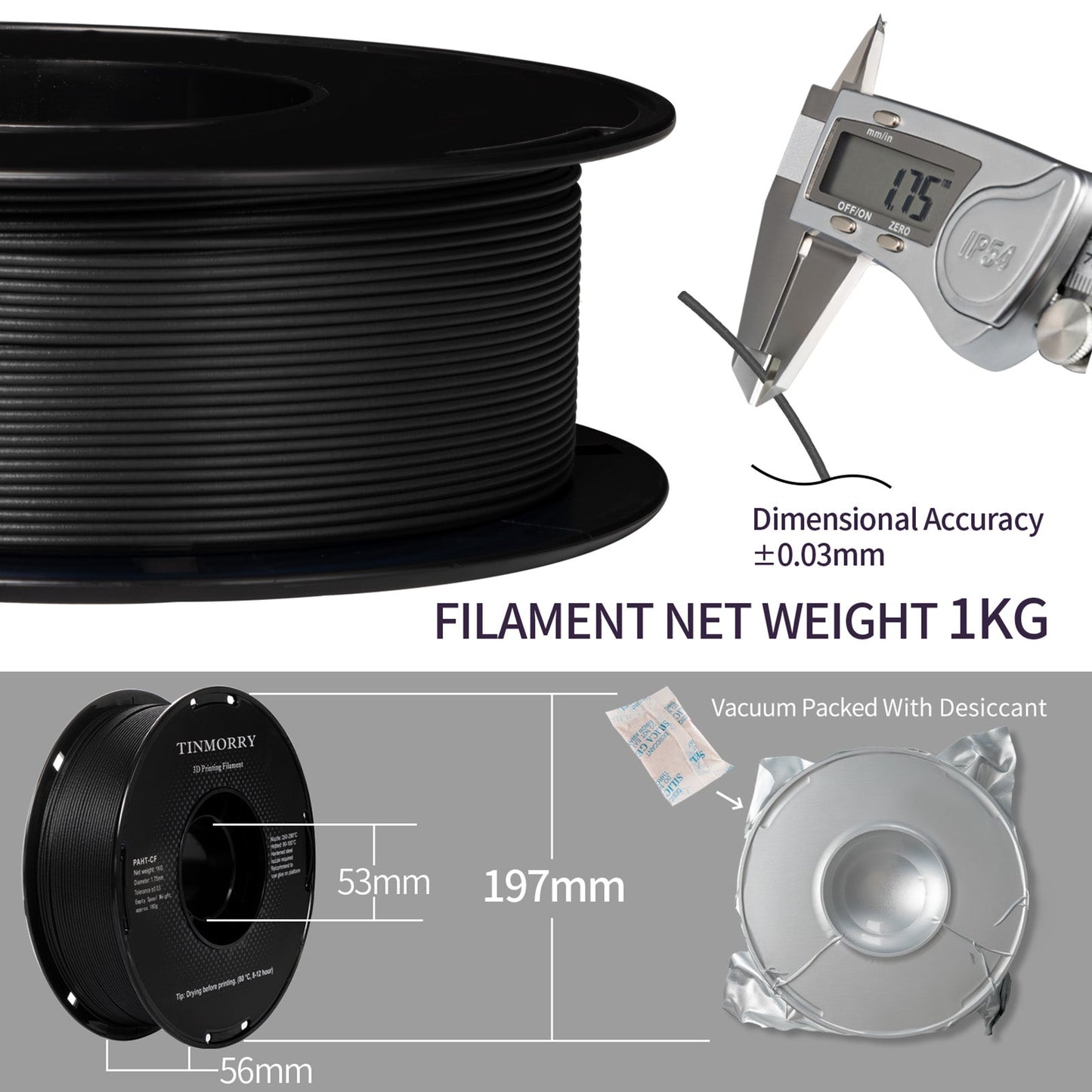

  • 1.75mm ± 0.03mm

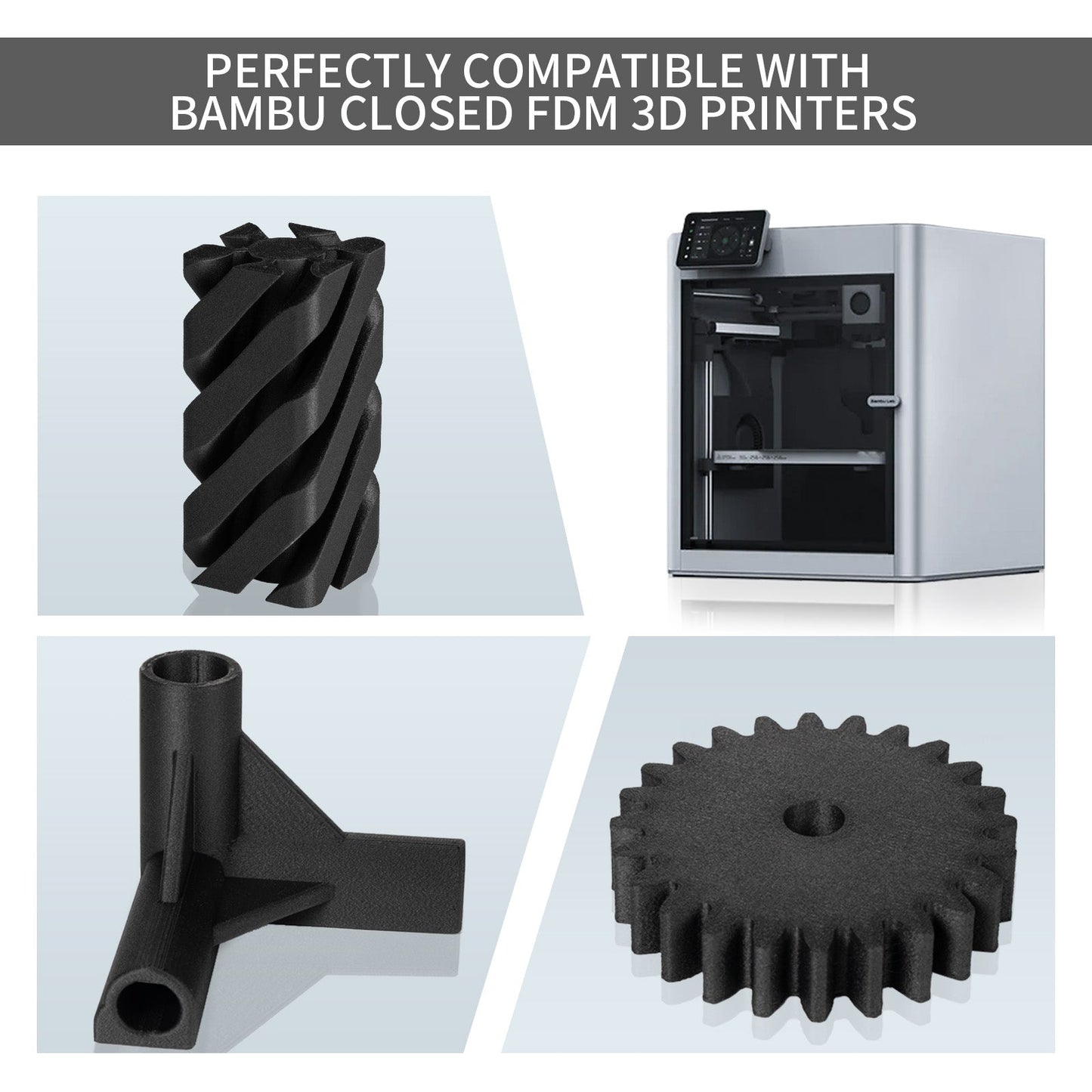

Accessory Compatibility
Build Plate PEI Plate, High temperature Plate(Bambu), Engineering Plate(Bambu)

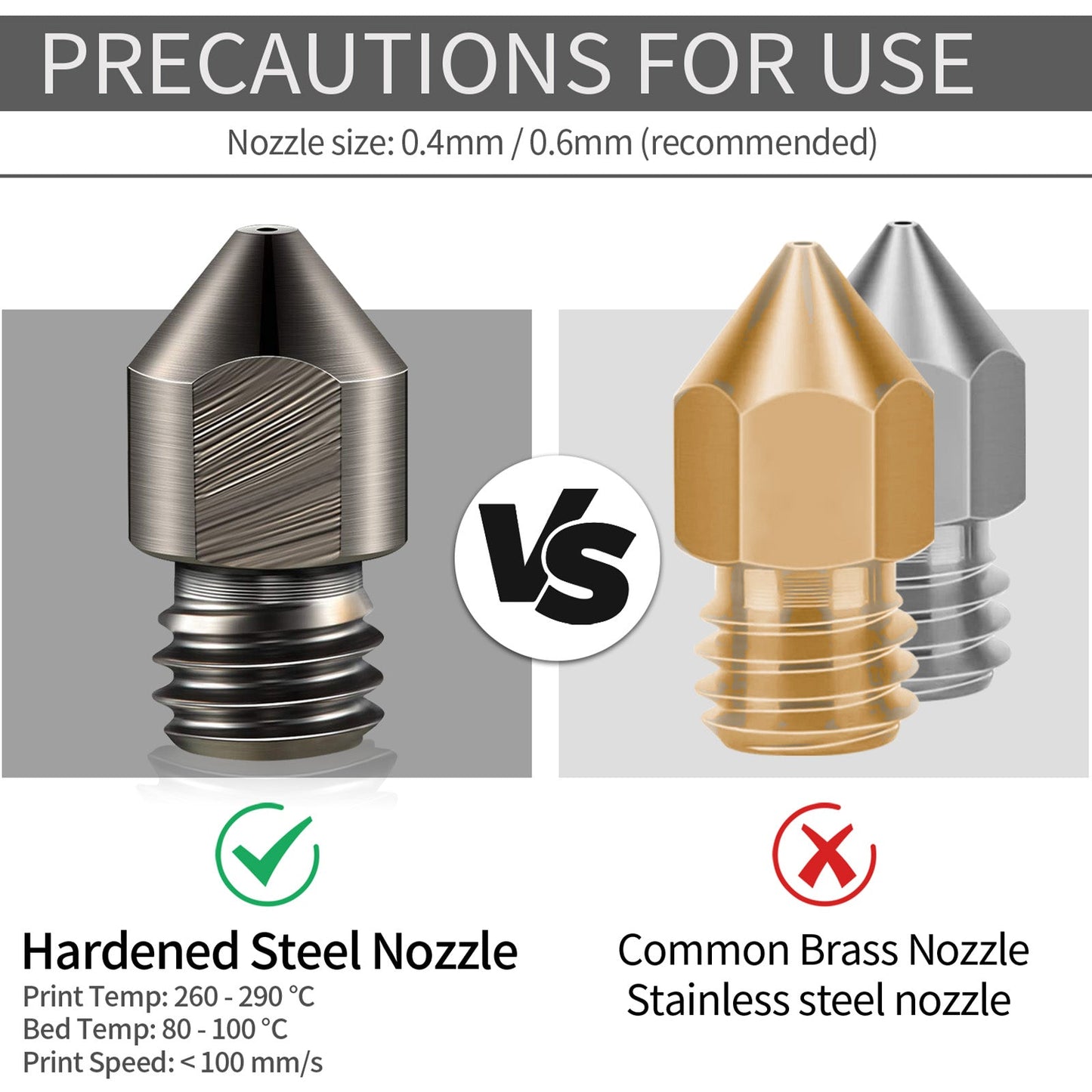

Hotend 0.6mm/0.4mm/0.8mm, Hardened Steel
Glue Spray Adhesive/Liquid Glue for Print Bed
Printer Enclosure Enclosed

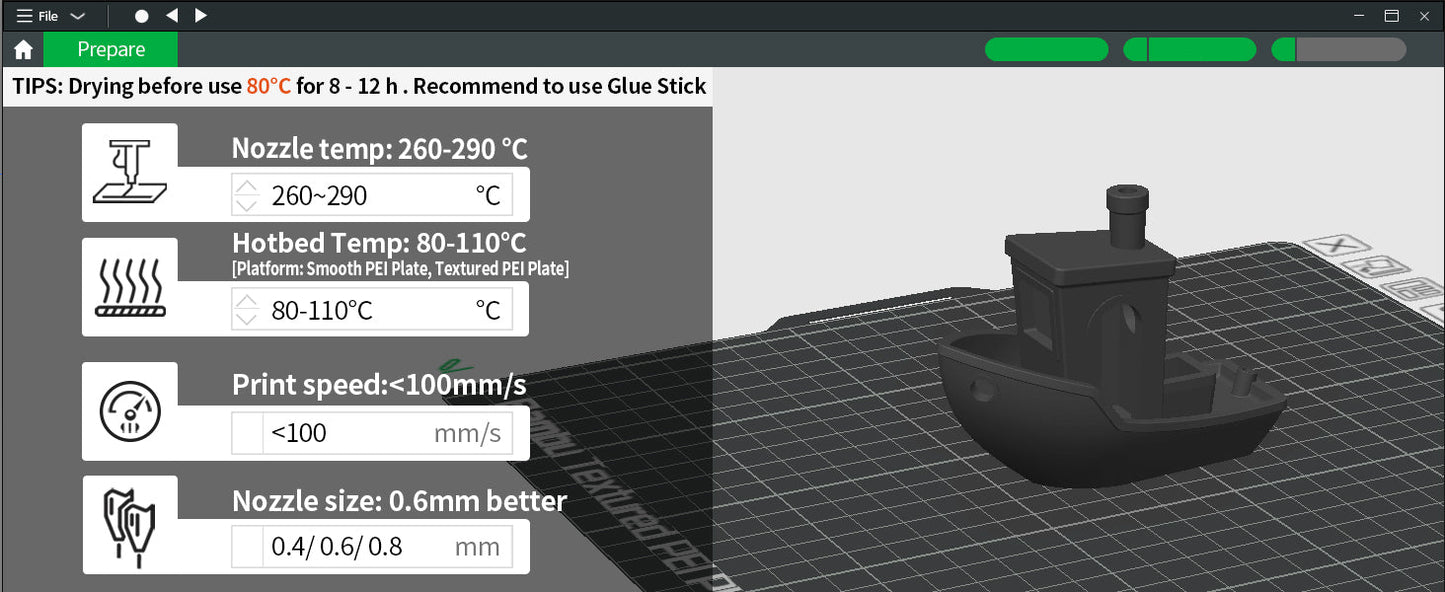

Recommand Settings

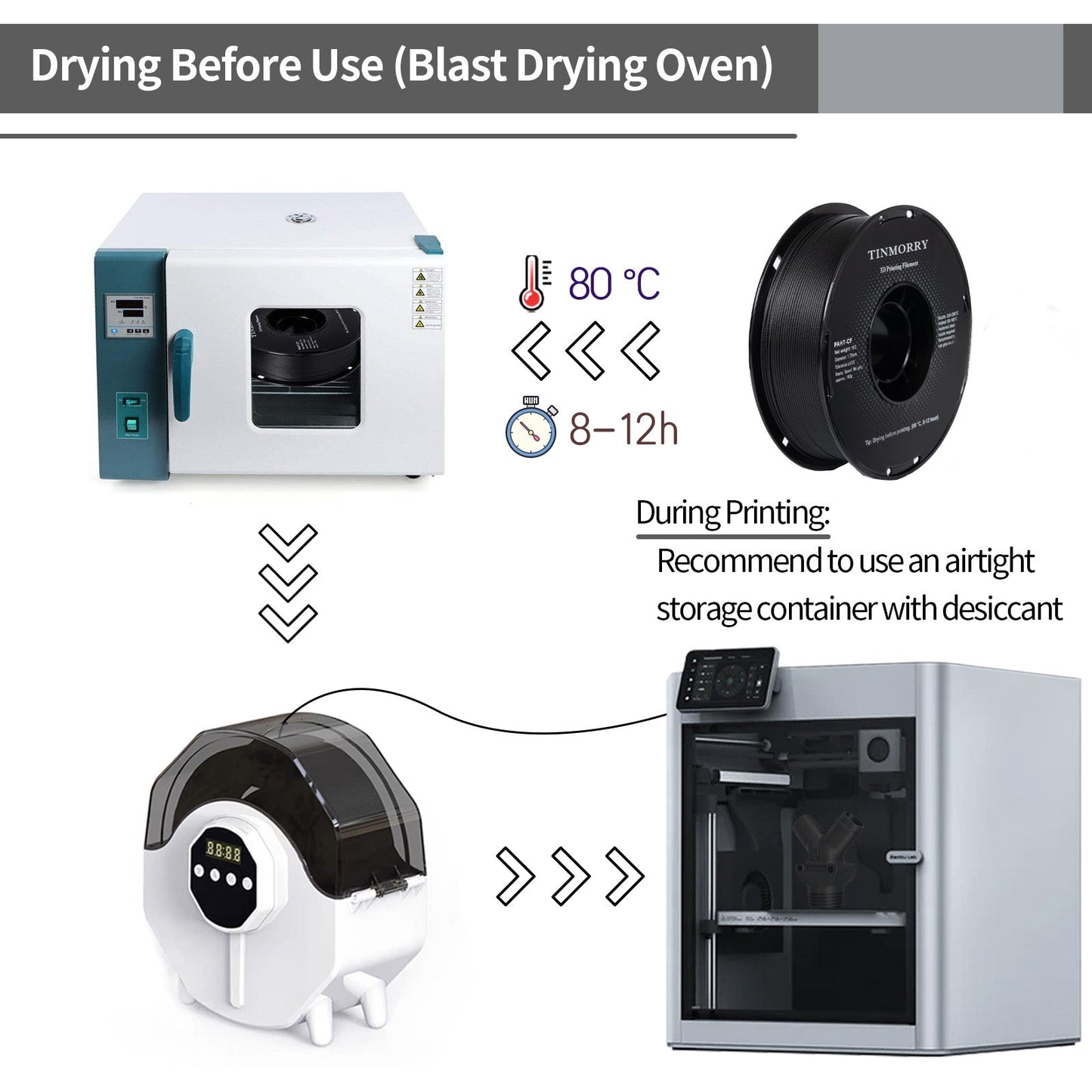

Drying Settings 80°C, 8-12hours (Convection Oven)
Nozzel Temperature 260-290°C
Bed Temperature 80°C-100°C
Print Speed ≤100 mm/s
Annealing Settings 80-130°C，5-12 hours
Printing and Keeping Container's Humidity < 20% RH (Sealed, with Desiccant)



Physical Properties
Density 1.06g/cm³
Vicat Softening Temperature 225°C

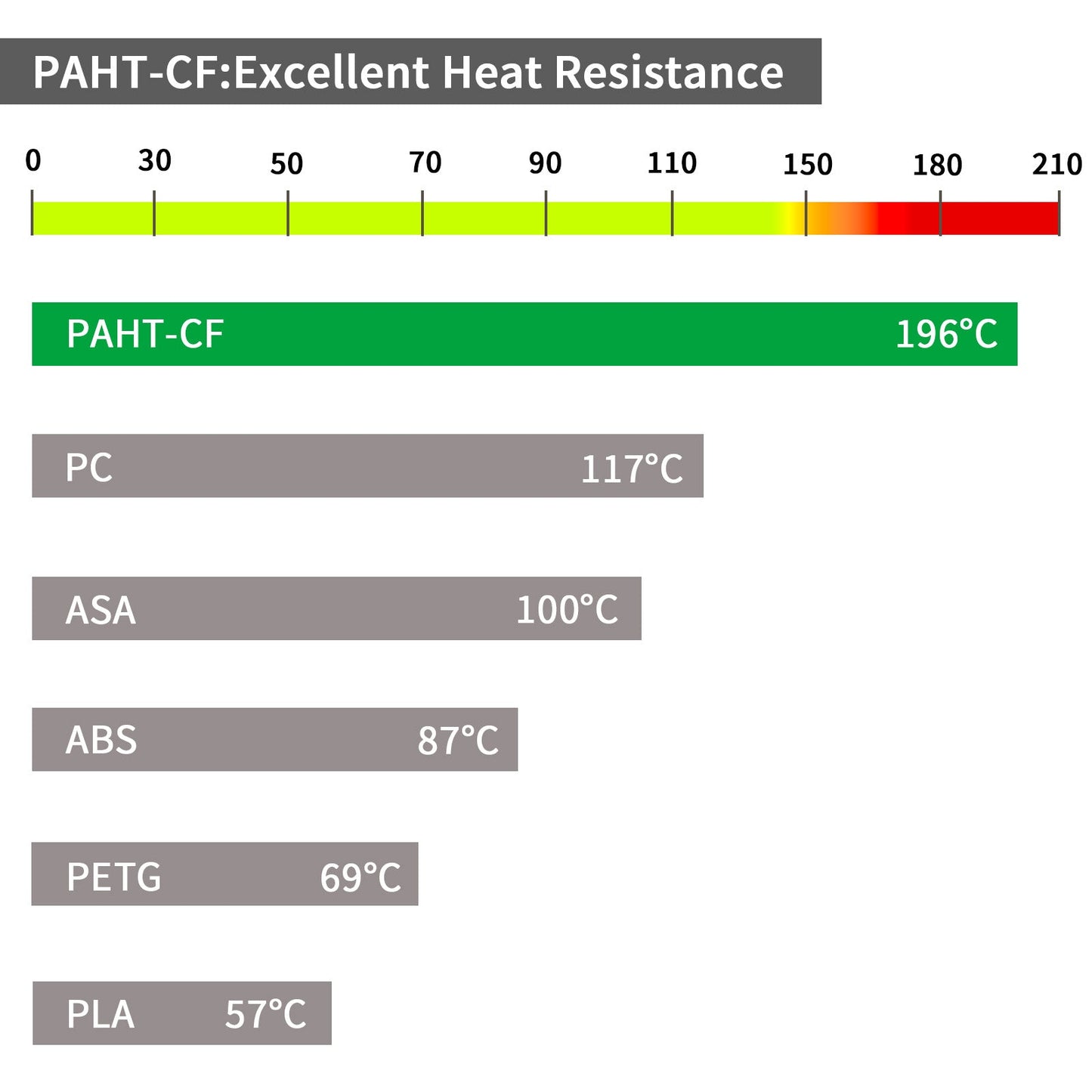

Heat Deflection Temperature 195°C
Melting Temperature 225°C
Melt Index 14.5g/10 min

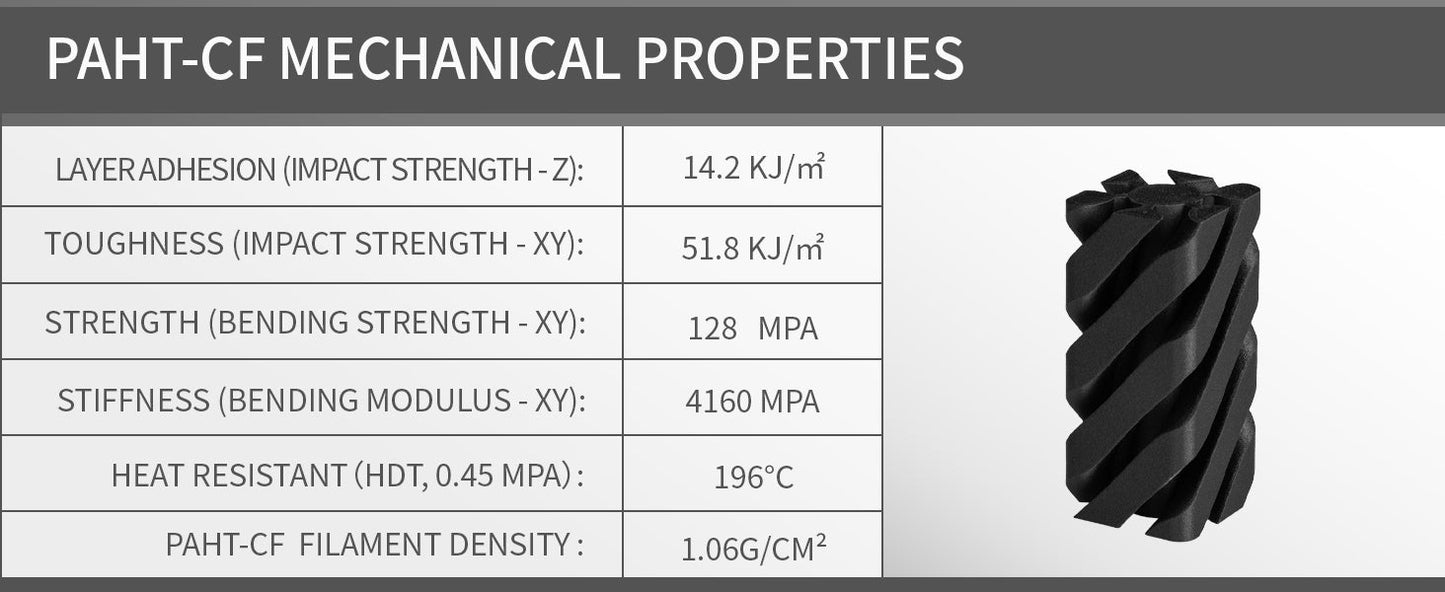

Mechanical Properties
Layer Adhesion (Impact Strength - Z) 14.2kJ/m²
Impact Strength - XY 51.8kJ/m²
Bending Strength - XY 4160MPa
Bending Modulus - XY 128MPa
